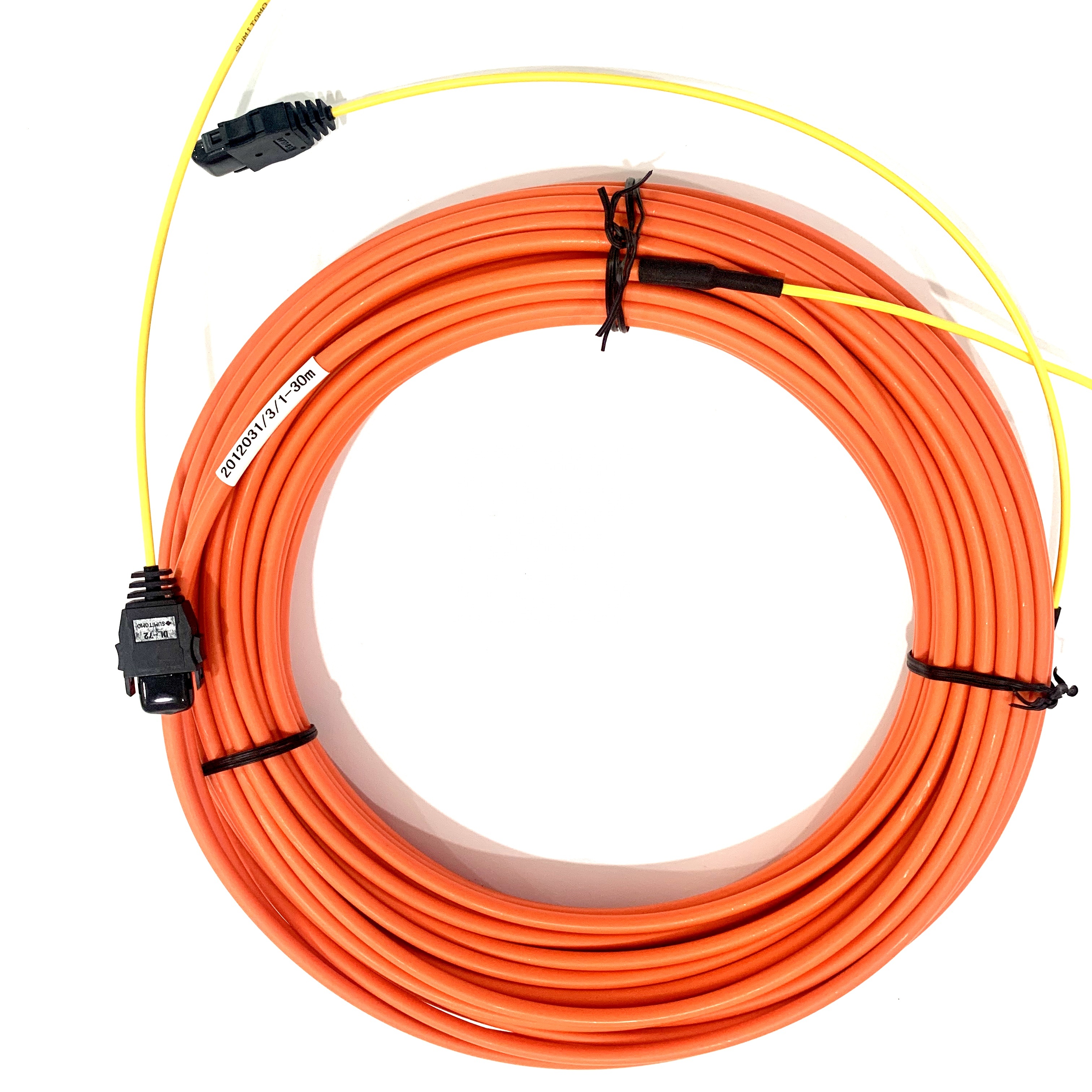

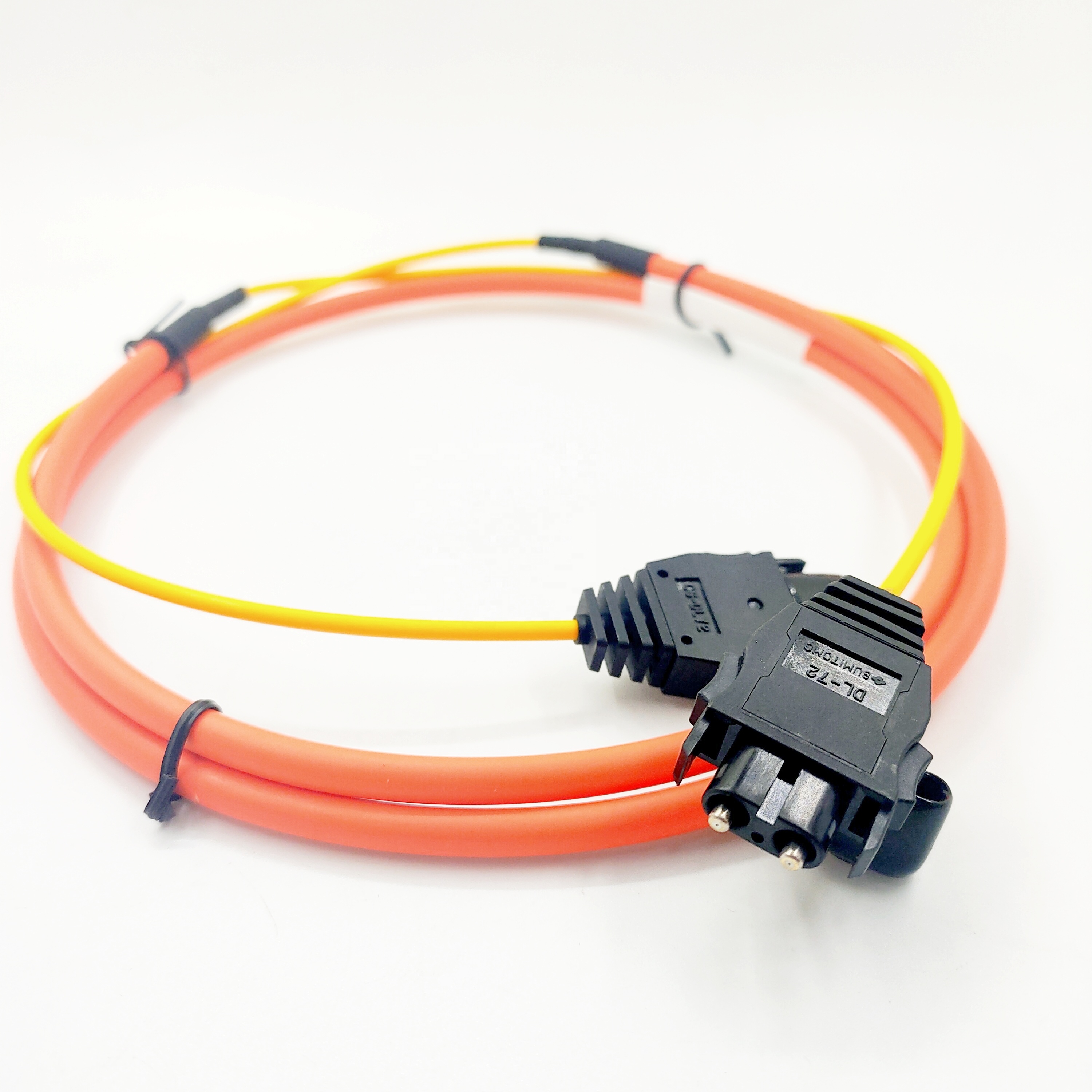

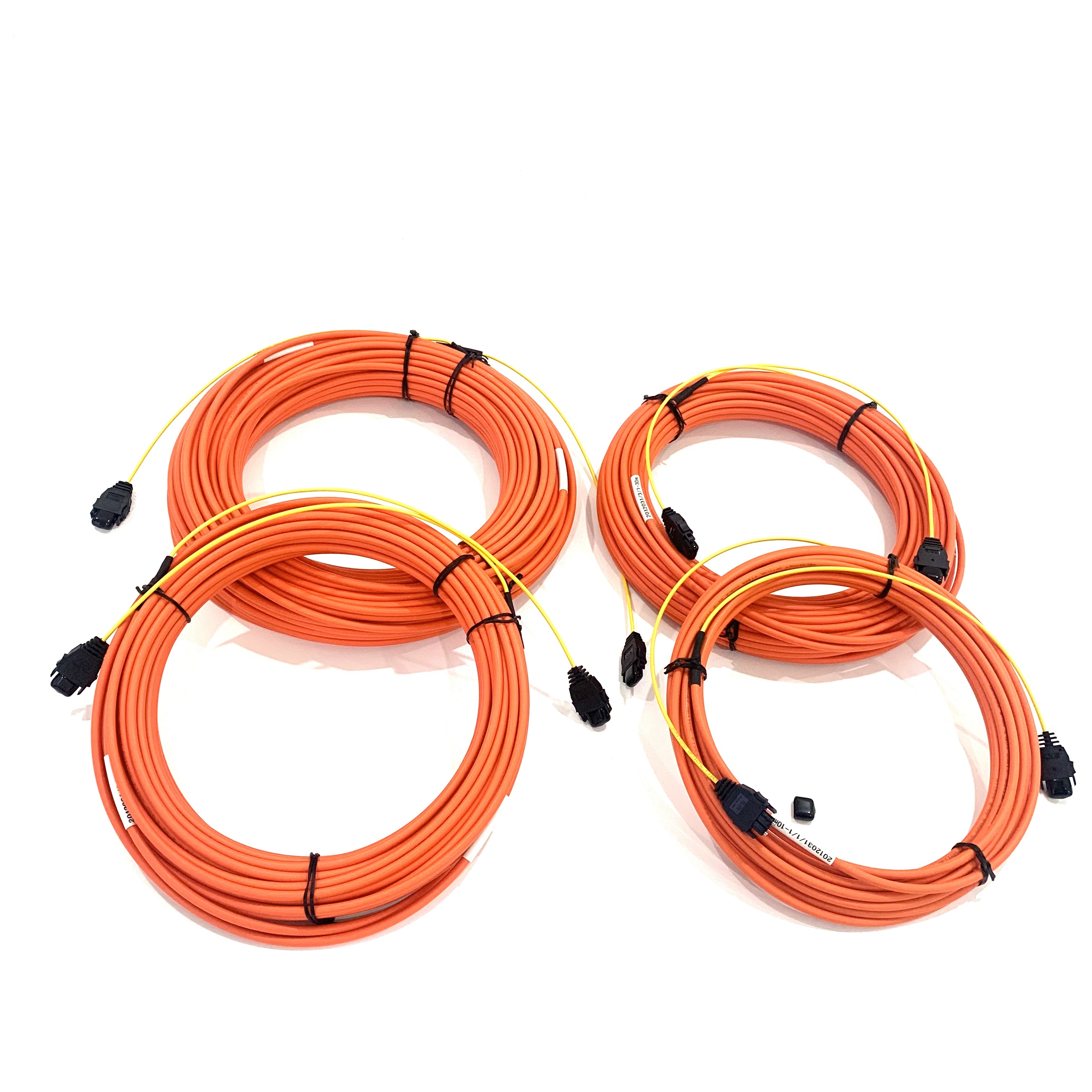

DL72 FIBER Connector DL72 ADAPTER MELSECNET/H Series

ELSECNET/H Fiber DL-72ME / Model: DL-72ME-DL-72ME-30M / Customized Avaialbe
It is fully compatible with all Mitsubishi Q series PLC module; completely replace the DL6-CP, DL-72, CA7003 and other fiber optic connectors. HPCF fiber has low loss, broadband domain excellent performance, but also has a rugged, easy to operate expertise, can easily be installed in the field crimping cutting optical connectors are used in various fields such as FA series.
Availability:
Quantity:
Inquire Add to Basket

  • DL-72

  • OPTICWAVE

Features

● Quick-connect plug self-locking system, insertion loss ≤ 0.1dB


● Fiber core needle cleaning easy

● Resistant to high temperature, operating temperature range -40 ℃ to +80 ℃

Applications

● Auto, Stell Plant

●DL-72 fiber optic connector is compatible with the following manufacturers of connectors: Mitsubishi CA7003, Hitachi: CA9003, SGK: SO1-L2.



Product Parameters
Name
Parameters
Name
Parameters
IL（SM）
≤0.8dB
Cable OD.
4.0mm
IL（MM）
≤0.5dB
Outer Sheath
LSZH
RL（SM）
≥50dB
Anti-push Unit
KEVLAR
Plug
≤500N（Main Cable）
Fiber Type
200/250, 62.5/125


Fiber Outer
900um fiber
Operation Tem.
-40℃～85℃
Tensile Strength
Short term：120N/ Long term：600N
Cable Parameter
