OW-15C
opticwave
Description

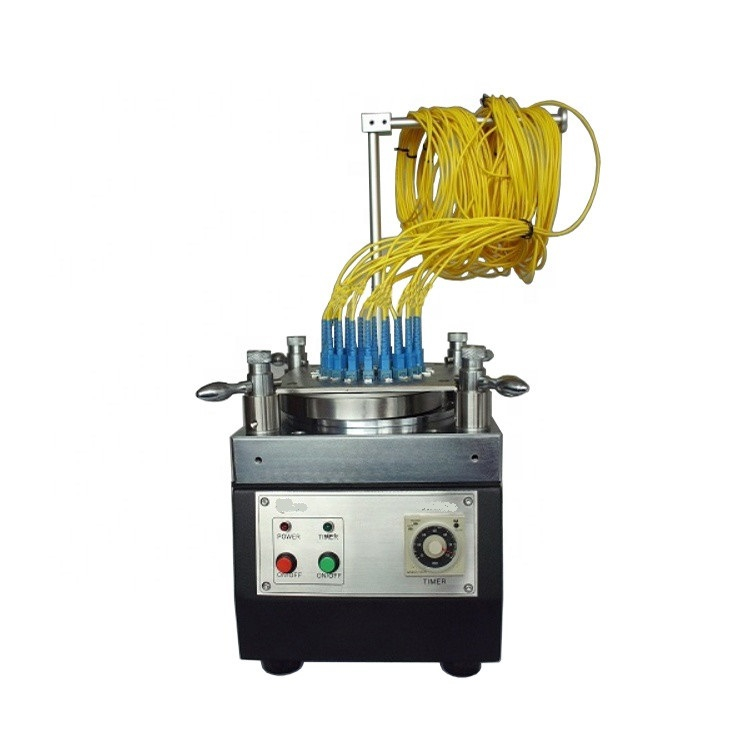

1. Fiber optic polishing machine
2. Designed for high volume manufacturing
3. Quick change tooling
4. APC back reflection as low as -70 dB
5. UPC back reflection as low as -60 dB
6. Insertion loss 0.2 dB typical
7. Super centering accuracy
8. Low undercut
9. Excellent connector endface polishing quality
Key Feactures:
1. Double motors with sufficient power
2. High accuraty Machinary size, minimal plane tolerance
3. High accuraty Machinary size, minimal plane tolerance
4. Excellent stability, five or ten years lifetime
Applications:
ZrO2 Ceramic Ferrules
2. Quartz capillary
3. Glass materials
4. Stainless steel and titanium alloy
5. Colophony material
Specifications
| 1. Certificate | CE |
| 2. APC return loss | -60 dB |
| 3. UPC return loss | -50 dB |
| 4. Insertion loss | 0.3 dB (SM), 0.2 dB (MM) |
| 5. Under cut | 50nm |
| 6. 3D pass | PC>95%, APC>90% |
| 7. Polishing capacity | SC 36 Max, LC 42 Max |
| 8. Pressure source | Coil Spring |
| 9. Motor speeed | 90rpm rotation, 2rpm revolution |
| 10 .Polish plate size | 127 mm(5 inch) |
| 11. Time settings | 99 min 99 sec (Max) |
| 12. Plate jumpiness height | <10 um |
| 13. Pressure configuration | 21 ~ 36 N/cm2 |
| 14. Pressure range | 0~5kg |
| 15. Noice | unloading <50 dB |
| 16. Work Temperature | 10℃~40℃ |
| 17. Relative Humidity | 15%~85% |
| 18. Libration | Working Status 0.25g 5~100Hz 10min |
| 19. Stopping Status | 0.50g 5~100Hz 10min |
| 20. Power Input | 220~230 VAC 50Hz/60Hz |
| 21. Electric Power | 40W |
| 22. Machine Size | L 240(mm) × W 240(mm) × H 260(mm) |
| 23. Net Weight | 26kg |
| 24. Warranty | One-year warranty |
