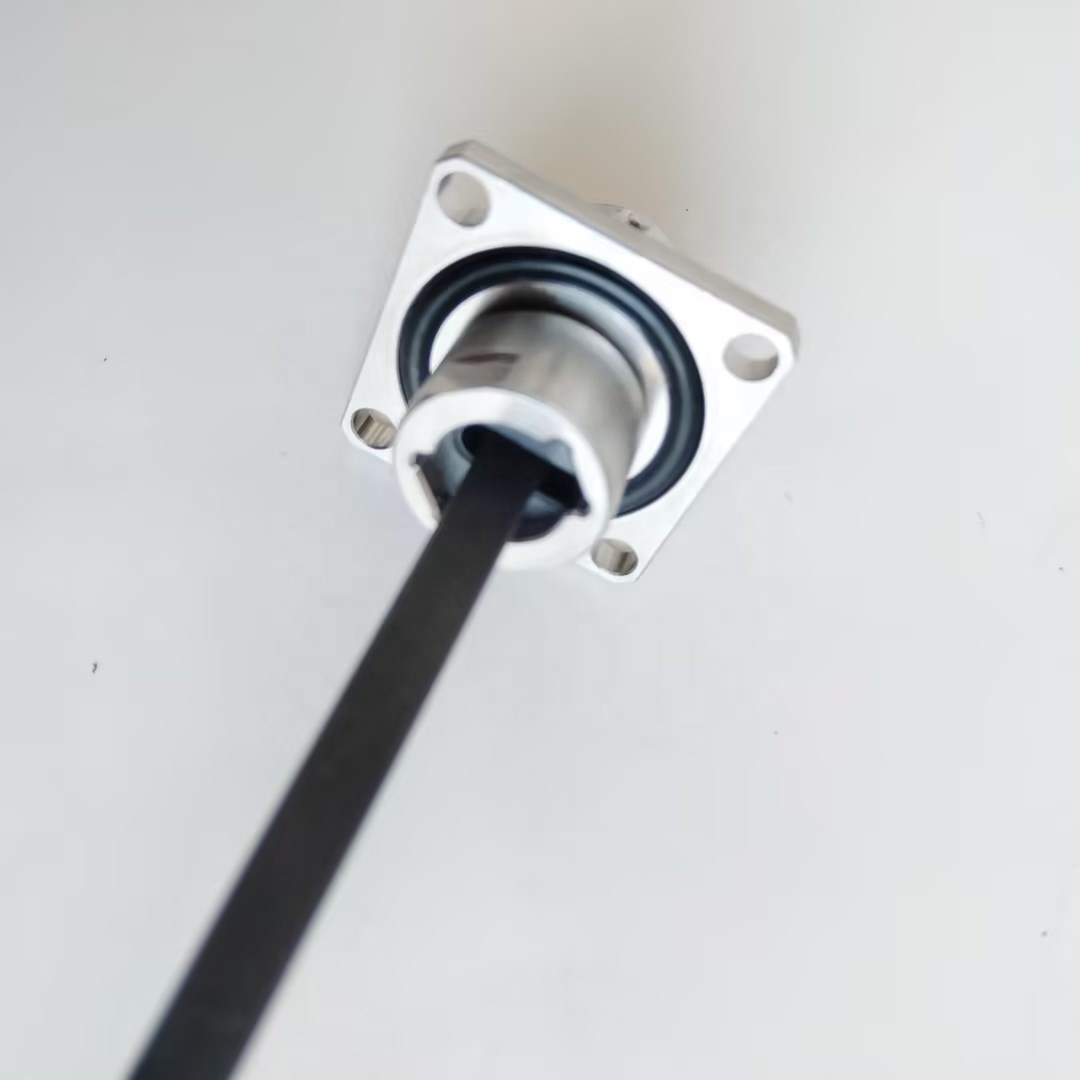

JYS Series tactical rugged fiber optic connector

JYS Suitable for systems such as electronics, aviation, ships, etc. Replace FC, LC and other civil activity connectorsThe outer casing can be made of diferent materials and coatings to meet different environmental requirementsThree-button positioning, blind insertion and error-proof insertion, fast bayonet connection, Optical alignment usincceramic pins and sleeves for precision docking.
Availability:
Quantity:
Inquire Add to Basket

  • JYS connector

  • kewei fiber

JYS Series Fiber connectors Parameter

Parameter Index Requirement
Insertion Loss single mode ≤0.6dB;multi mode ≤0.5dB
WorkingTemperature -40°C--+85°C
shocking 2940m/s²
Vibration 10-2000Hz, power spectral density 0.2G²/Hz
Mechanical life 500times
Salt spray property 48H

JYS Series Fiber connectors Connecting ways

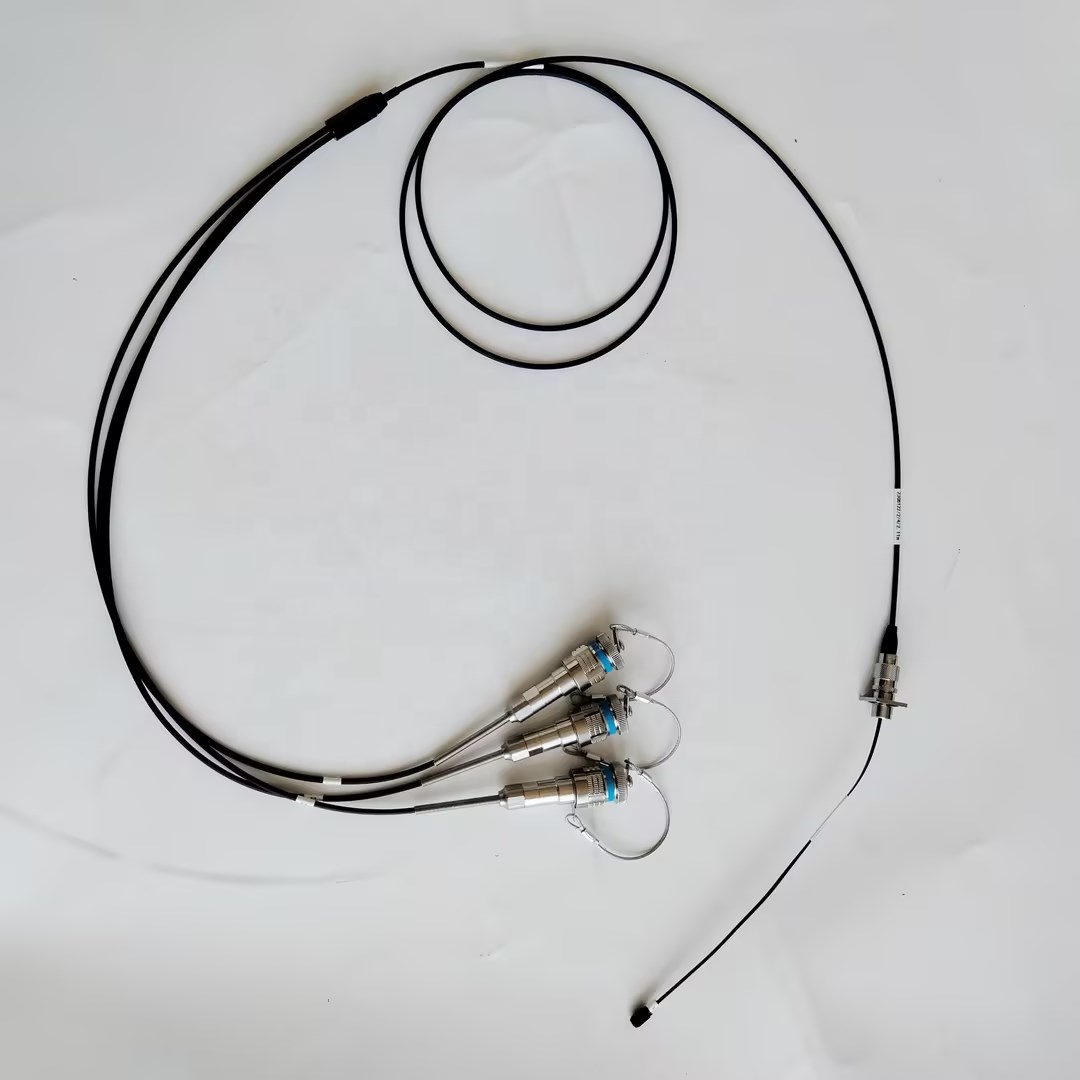

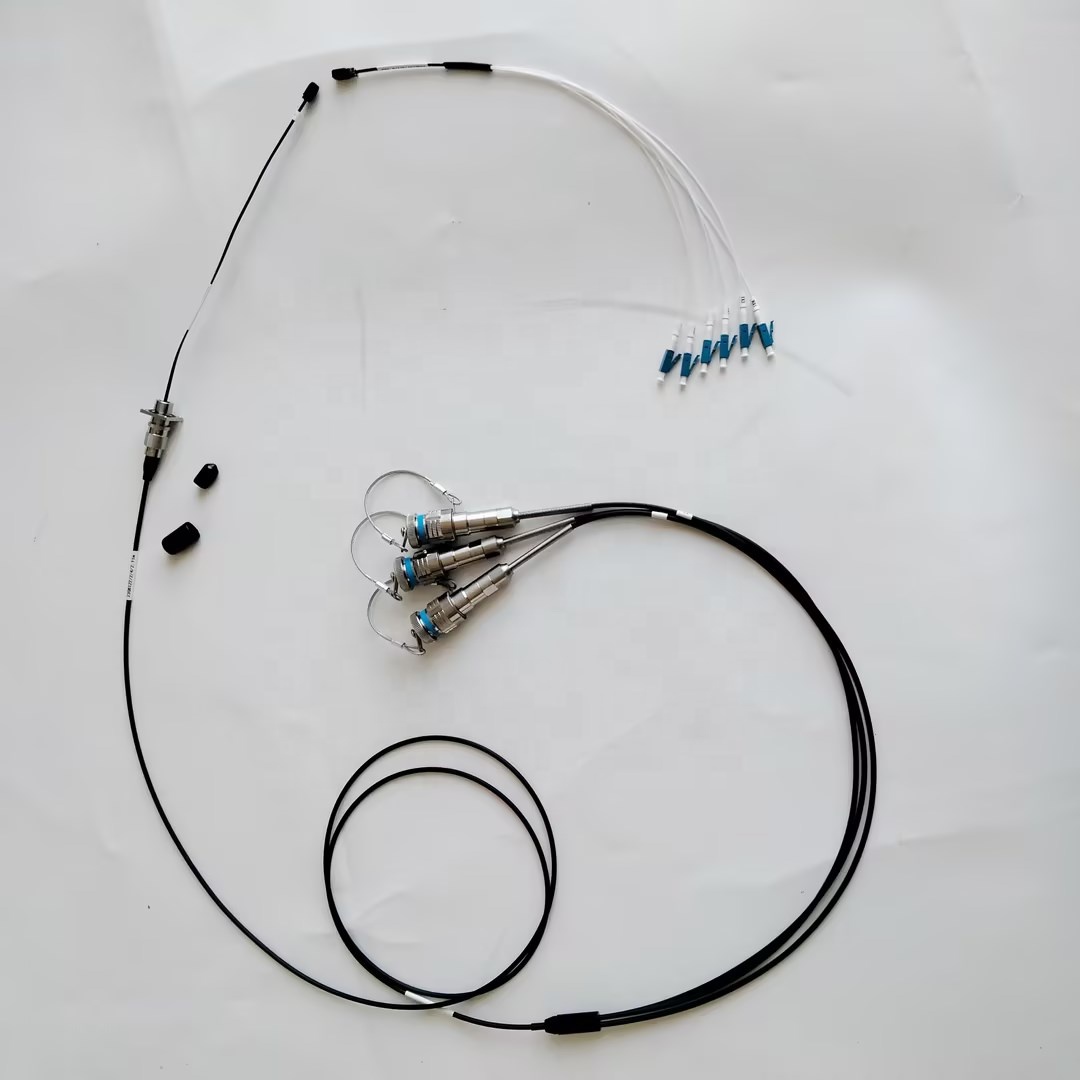

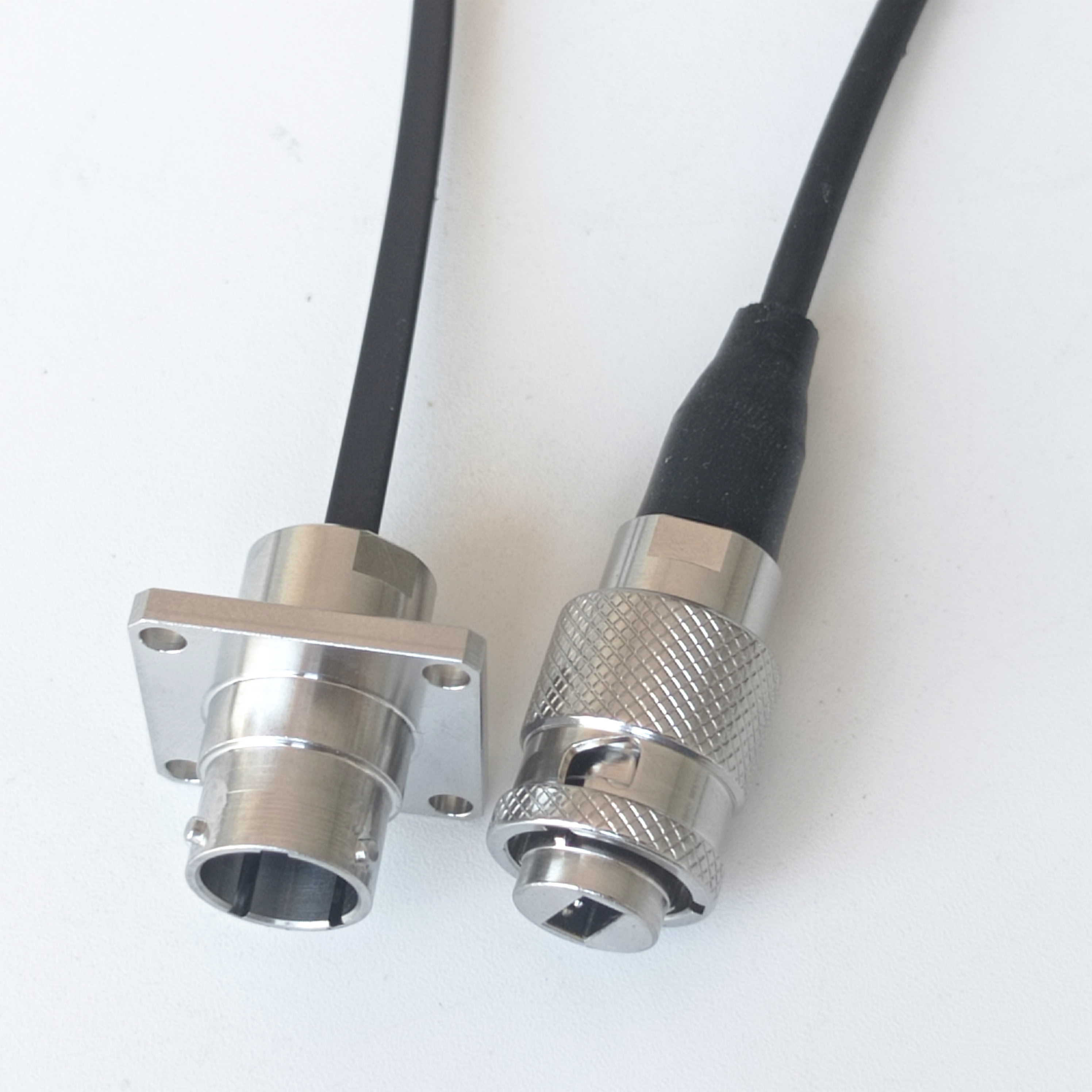

JYS Series JYSK22N02 2CORES PLUG AND SOCKEJYS Series JYSK22N04 2CORES PLUGJYS Series GZLD/2 2CORES PLUGJYS Series JYSK22A15 2CORESPLUG AND SOCKET JYS PLUG AND SOCKET ConnectingJYS Series Connectors Assamblies ShowJYS Series Connectors Assamblies Show
