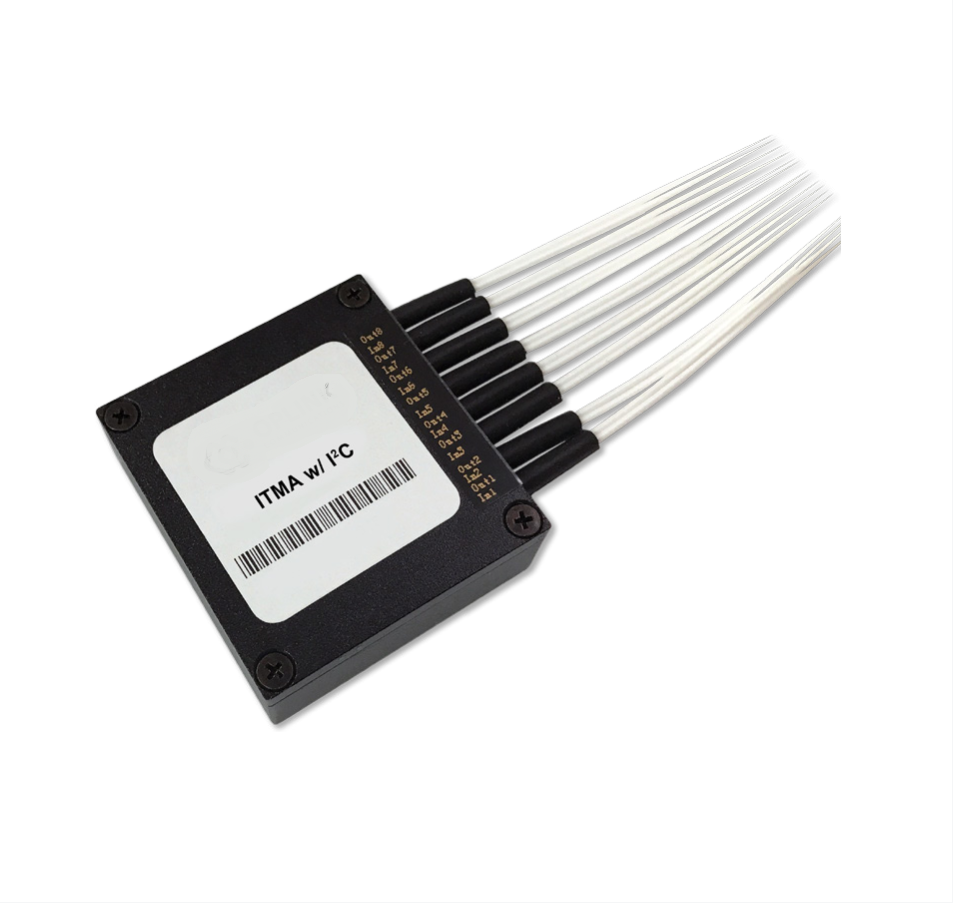

Parameter | SPECIFICATION | Unit | ||
Wavelength Range | 1525-1610 | |||
Through | Insertion Loss*,** | 2% | <0.4 | dB |
| 5% | <0.6 | |||
| 10% | <0.9 | |||
| Polarization Dependent Loss | <0.05 | dB | ||
| Return Loss* | >45 | dB | ||
| Tapped monitoring | Power monitoring accuracy (@25°C 1550nm normal input power) | +/-0.5 | dB | |
Conditions | Input Optical Power | -30 to +10 | dBm | |
| Operating Temperature Rang (<90%RH,no condensing) | -5--+70 | °C | ||
| Storage Temperature Rang (<90%RH,no condensing) | -40--+85 | °C | ||
| Fiber Type | SMF-28 | |||
| Pin# | I/O | Name | Description |
| 1 | I | VCC | 4.75-5.25V,Power(max0.3A) |
| 2 | I | GND | Ground |
| 3 | I | A0 | Slave I²C Address offset0(3.3V LVTTL) |
| 4 | I | A1 | Slave I²C Address offset1(3.3V LVTTL) |
| 5 | I | A2 | Slave I²C Address offset2(3.3V LVTTL) |
| 6 | I | A3 | Slave I²C Address offset3(3.3V LVTTL) |
| 7 | I | A4 | Slave I²C Address offset4(3.3V LVTTL) |
| 8 | I/O | SCL | I²C Clock( LVTTL),with no pull-up & pull-down Resistor in module |
| 9 | I/O | SDA | I²C Data( LVTTL),with no pull-up & pull-down Resistor in module |
| 10 | I | RESET | HW Reset, Active low(LVTTL) |
Parameter | SPECIFICATION | Unit | ||
Wavelength Range | 1525-1610 | |||
Through | Insertion Loss*,** | 2% | <0.4 | dB |
| 5% | <0.6 | |||
| 10% | <0.9 | |||
| Polarization Dependent Loss | <0.05 | dB | ||
| Return Loss* | >45 | dB | ||
| Tapped monitoring | Power monitoring accuracy (@25°C 1550nm normal input power) | +/-0.5 | dB | |
Conditions | Input Optical Power | -30 to +10 | dBm | |
| Operating Temperature Rang (<90%RH,no condensing) | -5--+70 | °C | ||
| Storage Temperature Rang (<90%RH,no condensing) | -40--+85 | °C | ||
| Fiber Type | SMF-28 | |||
| Pin# | I/O | Name | Description |
| 1 | I | VCC | 4.75-5.25V,Power(max0.3A) |
| 2 | I | GND | Ground |
| 3 | I | A0 | Slave I²C Address offset0(3.3V LVTTL) |
| 4 | I | A1 | Slave I²C Address offset1(3.3V LVTTL) |
| 5 | I | A2 | Slave I²C Address offset2(3.3V LVTTL) |
| 6 | I | A3 | Slave I²C Address offset3(3.3V LVTTL) |
| 7 | I | A4 | Slave I²C Address offset4(3.3V LVTTL) |
| 8 | I/O | SCL | I²C Clock( LVTTL),with no pull-up & pull-down Resistor in module |
| 9 | I/O | SDA | I²C Data( LVTTL),with no pull-up & pull-down Resistor in module |
| 10 | I | RESET | HW Reset, Active low(LVTTL) |
