D38999
OPTICWAVE

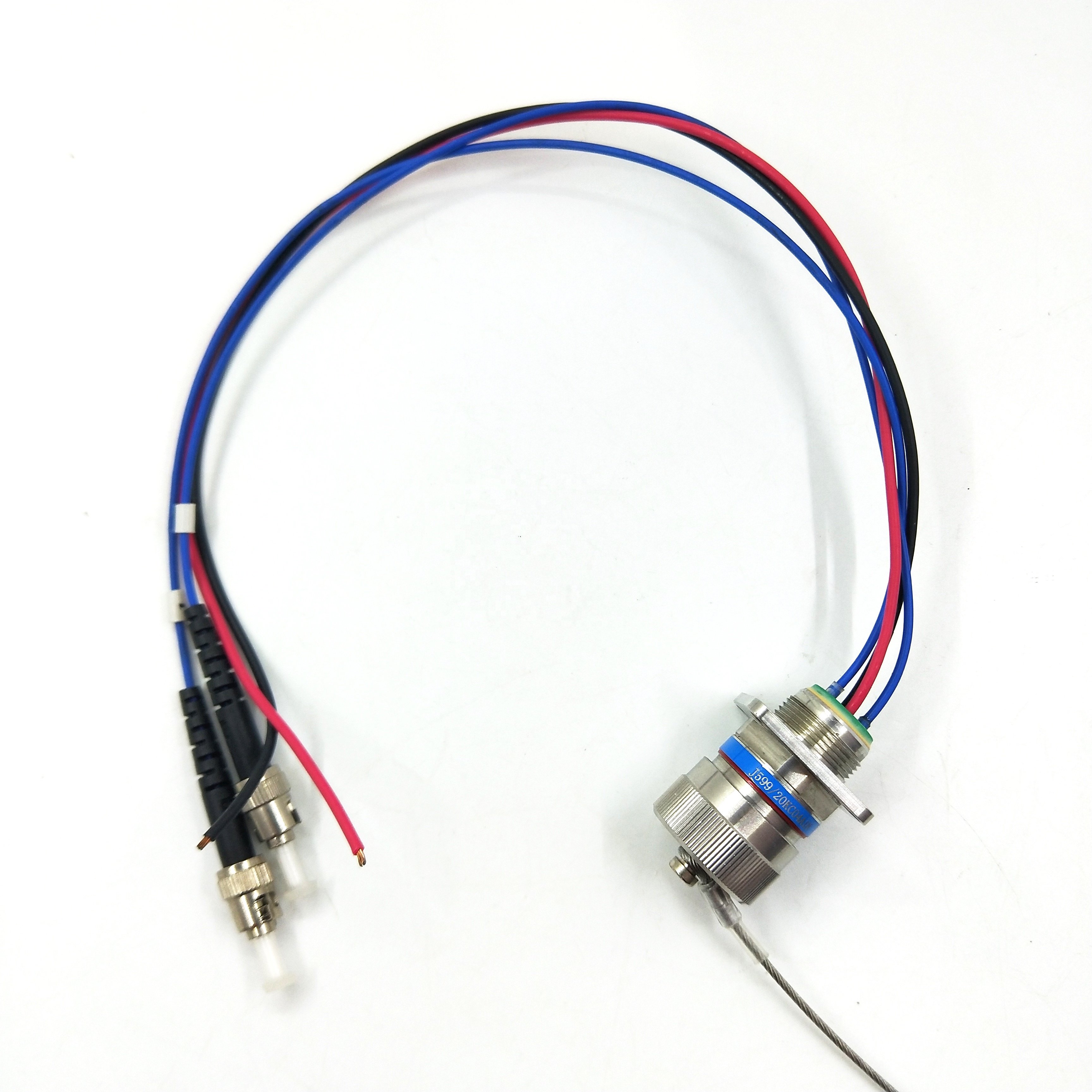

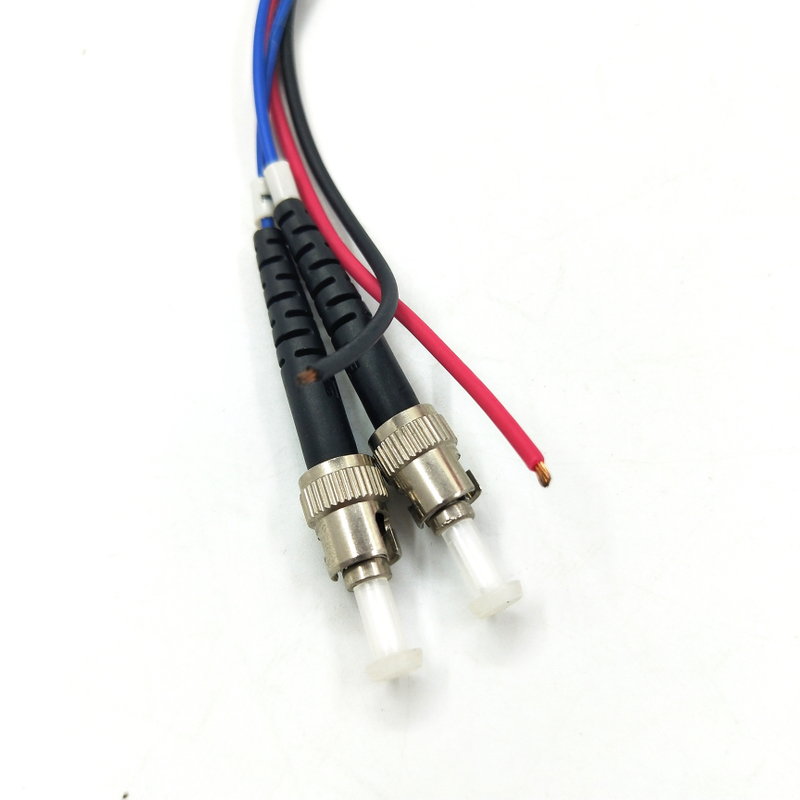

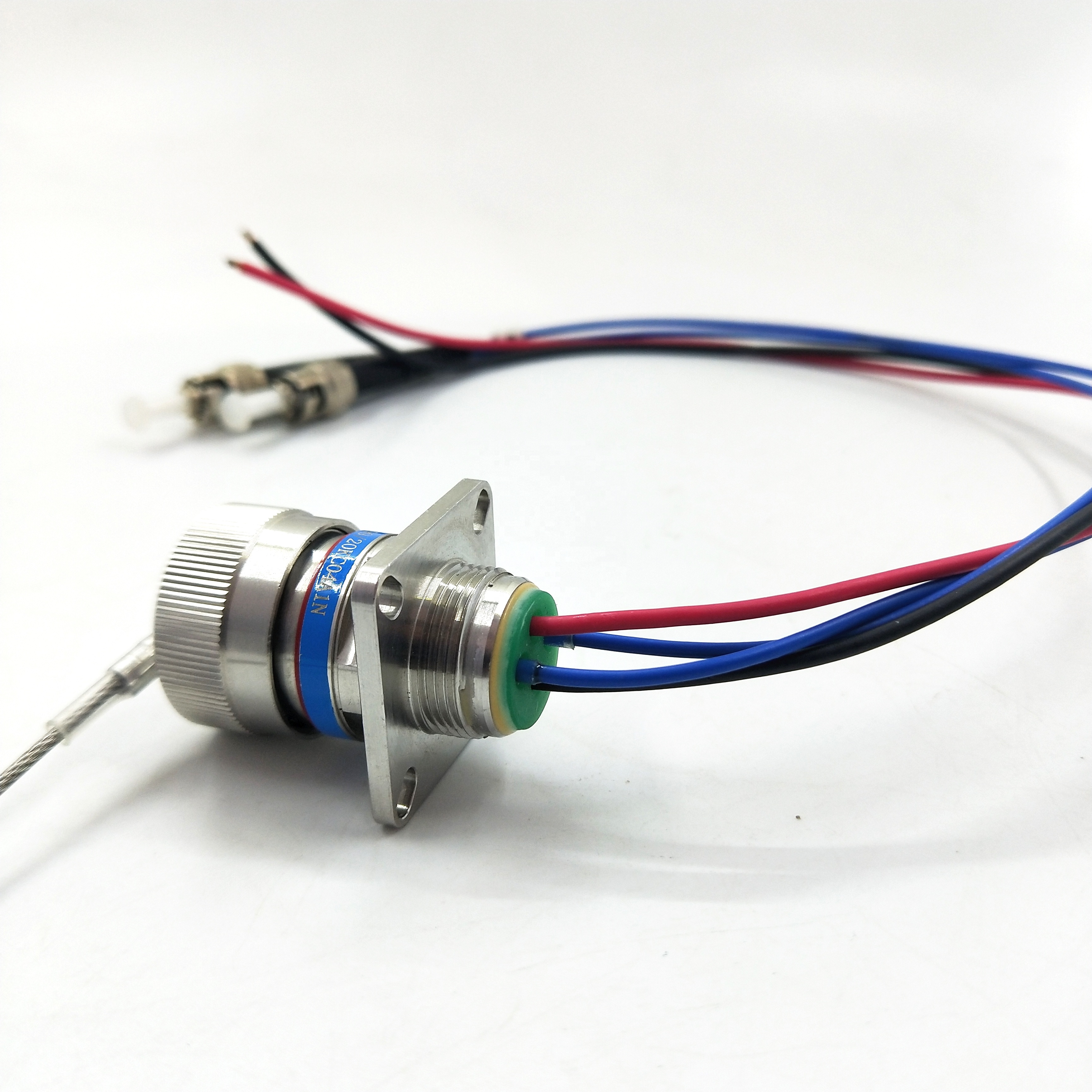

YZGI Optoelectronic hybrid cable assembly can be customized according to actual needs into different cable lengths and connector combinations, all standard fiber optic connectors (eg LC, SC, etc.) can be connected. Mainly used: outdoor harsh environment fiber optic communications, pulling away communication base stations, intelligent substation, military communications equipment, railway signal control, mines and other harsh environments.

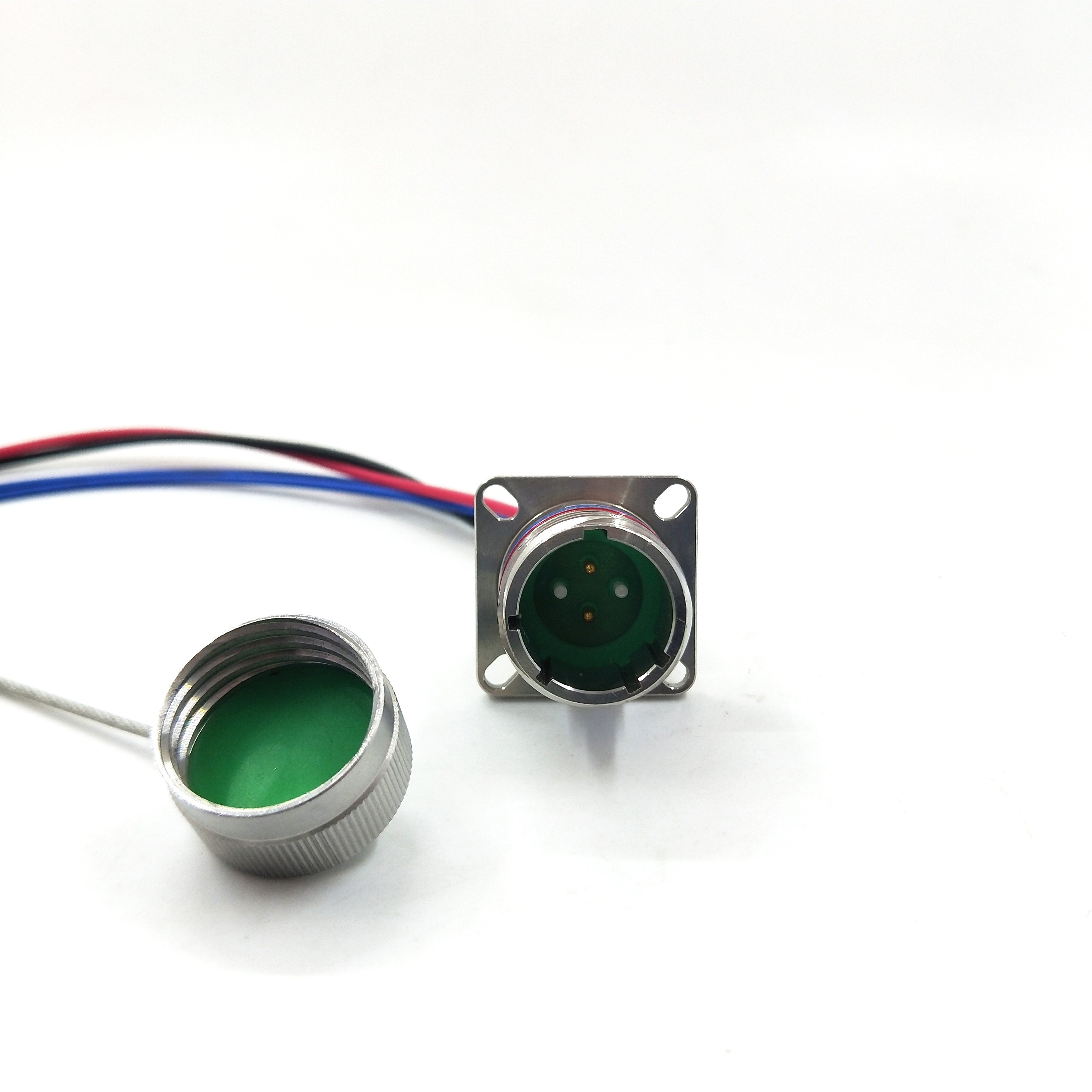

● Stainless steel shell SUS316L applied in marine environments
● Anti-Resistance ,can be bear with 500KG tensile.
● Waterproof seal, to ensure the use of the process of power supply and good transmission of optical signals
● 2 power lines, 2 fiber optic signal
● Marine exploration
●Marine communication equipment connection
●Carrier equipment etc
| Name | Parameters | Name | Parameters |
| Insertion Loss | ≤1.0dB (Typical≤0.5dB) (SM) | Cable OD. | 5.0mm or 4.0mm |
| ≤1.0dB (Typical≤0.2dB) (MM) | Outer Sheath | TPU | |
| Return Loss | ≥50dB | Anti-push Unit | KEVLAR |
| Mechanical | ≤1000N(Main Cable) | Fiber Type | 9/125, 50/125, 62.5/125 |
| ≤100N(Branch Cable) | Fiber Outer | 900um fiber | |
| IP Rate | IP67 | Tensile Strength | Short term:120N/ Long term:600N |
| Operation Temp. | -40℃~85℃ |
