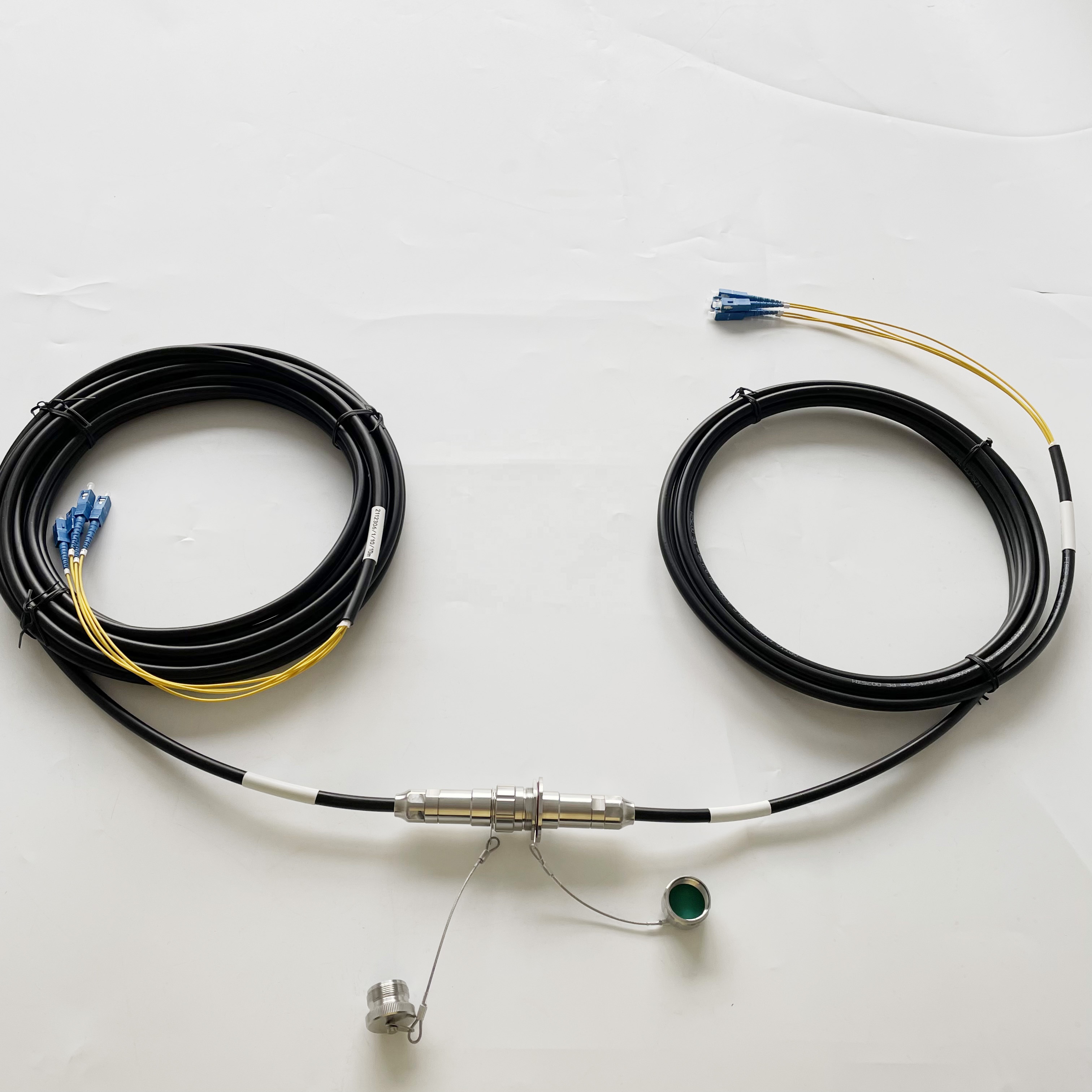

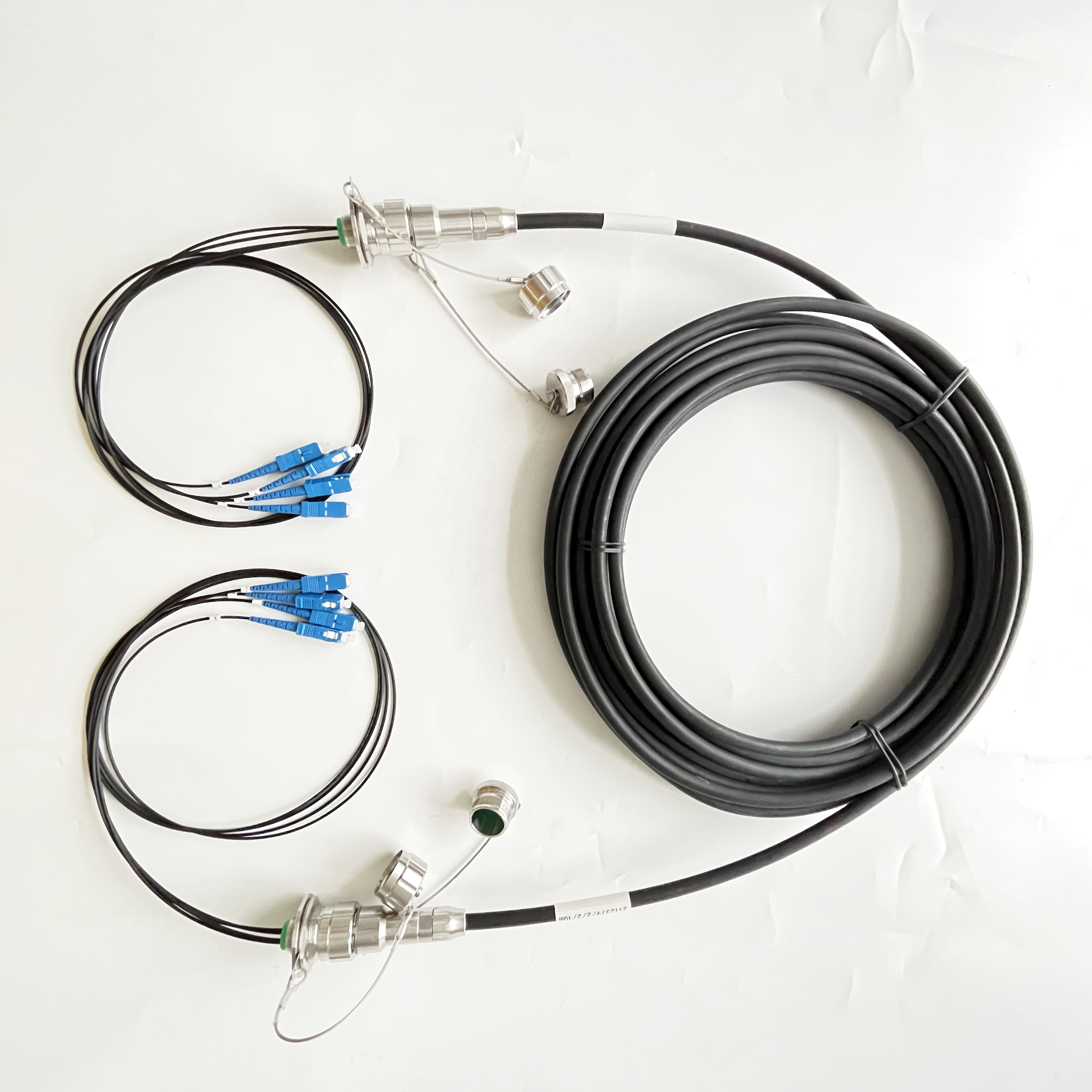

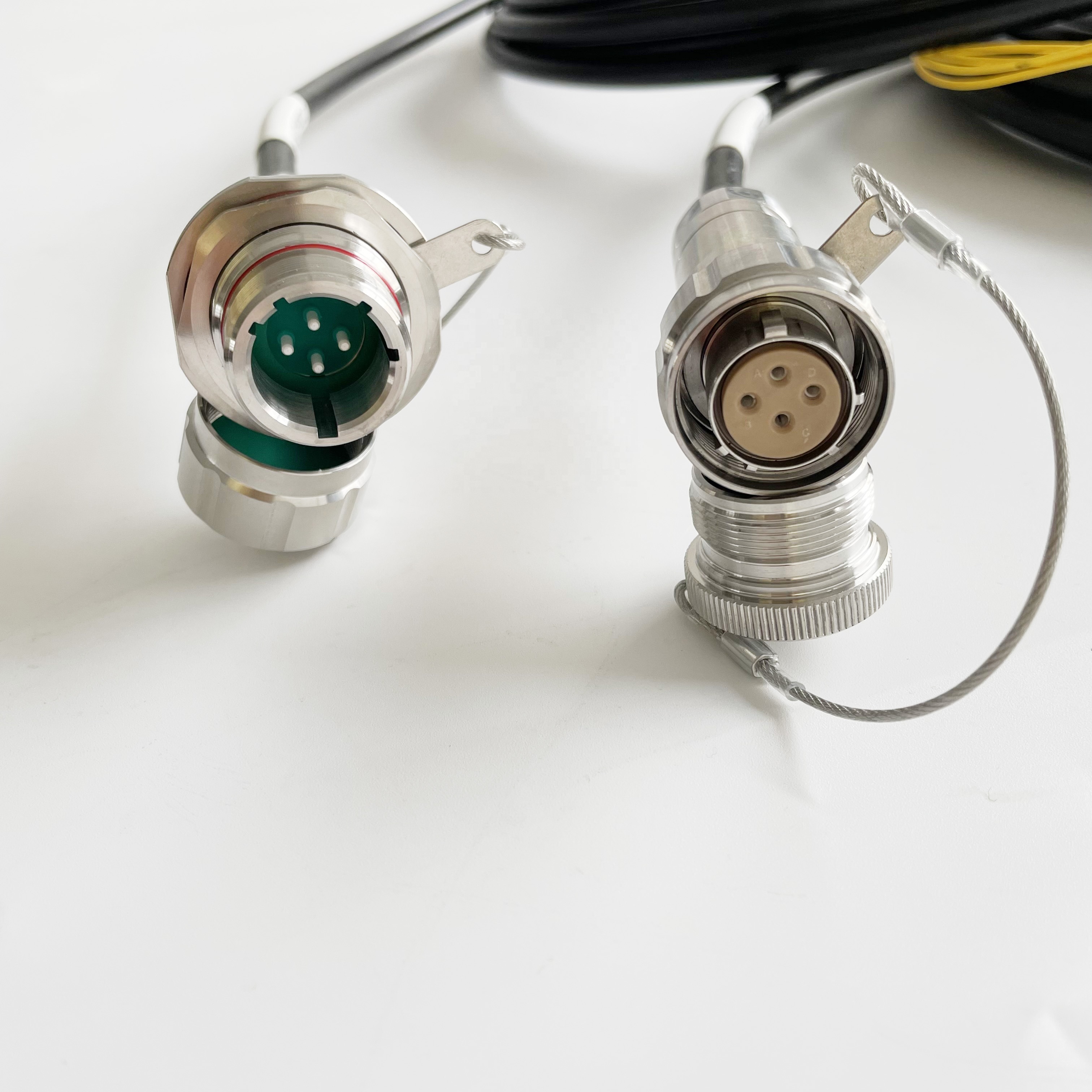

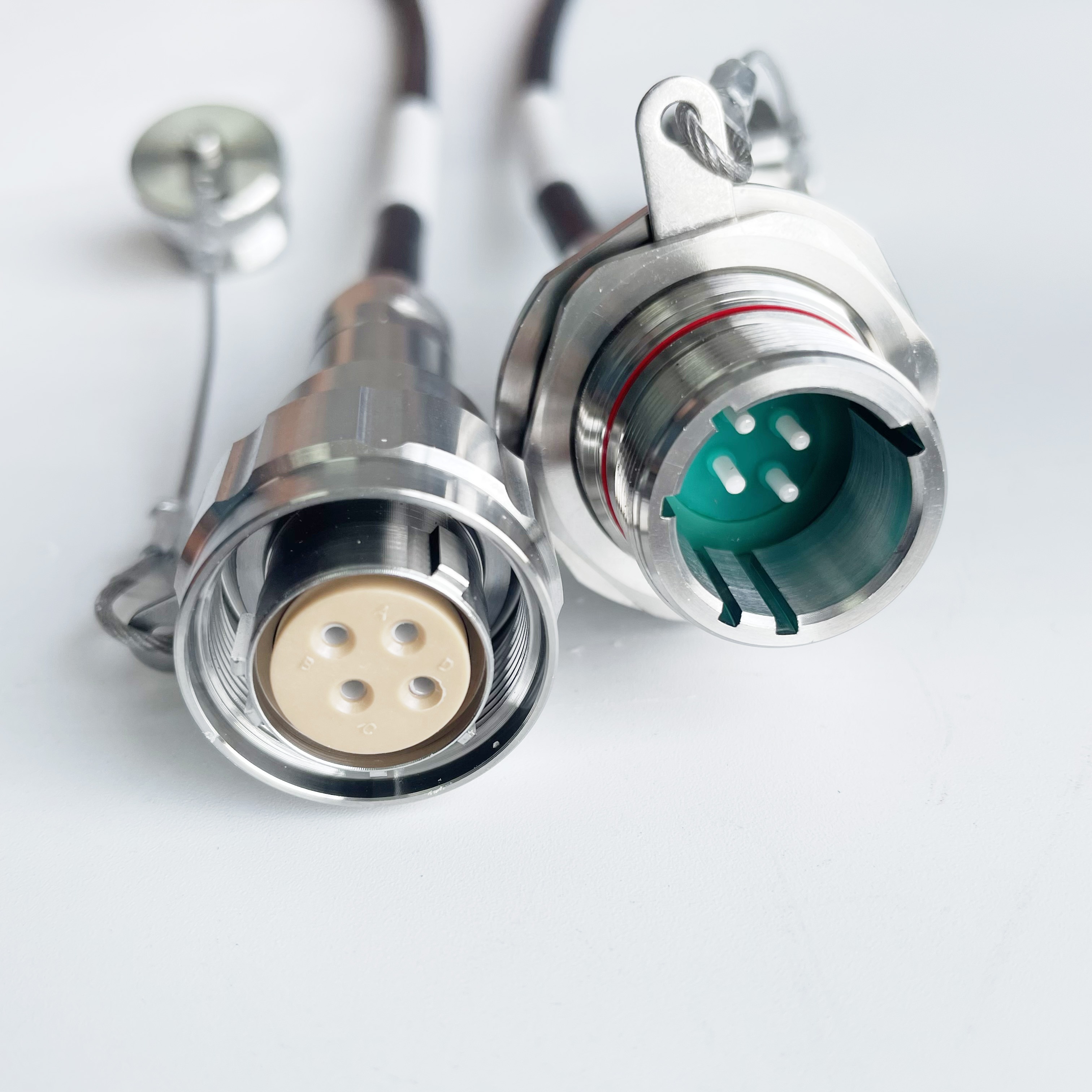

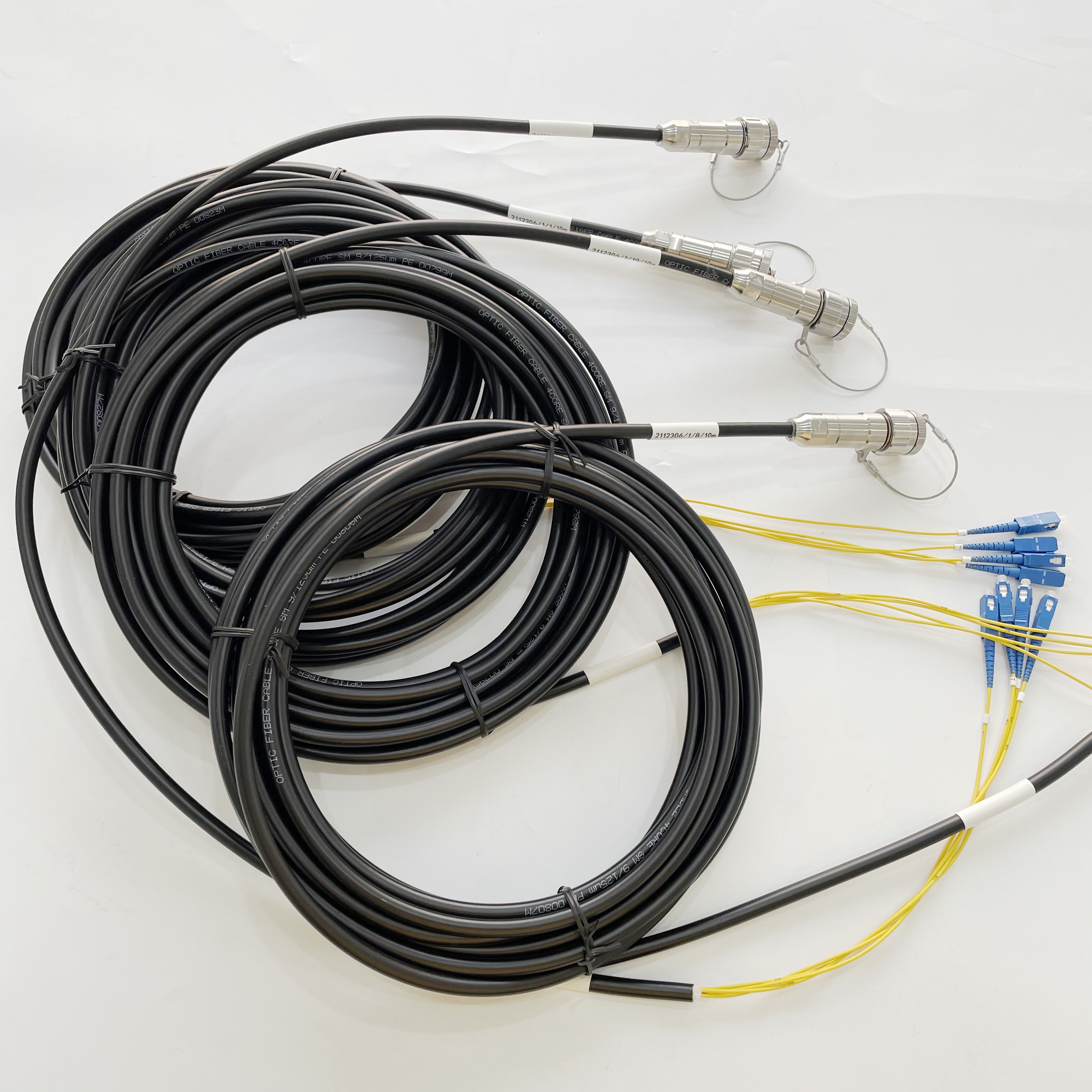

Specilty Mine Using ZLO/ GYD18 Series 4cores Male and Female Fiber Connector ZLO04P ZLO04S /GYD18T4PN GYD18T4SN

The wall sealing connection structure can connect 2 or 4 optical fibers at a time
Five-key positioning, blind insertion and anti-error insertion function
Standard ceramic pin and sleeve
The housing is made of stainless steel, strong and corrosion-resistant
Waterproof seal, suitable for outdoor use
It is specialized in the communication application of coal mine, gold mine, iron mine and other mining occasions, as well as the internal communication application of mine
Availability:
Quantity:
Inquire Add to Basket

  • ZLO

  • kewei fiber

ZLO/GYD18 Series PRODUCT PARAMETER
Parameter
Index Requirement
Insertion Loss
≤0.6dB
WorkingTermperature
-40℃~+85℃
Waterproof Level
IP67
Maintenance force of optical cable components
≥720N

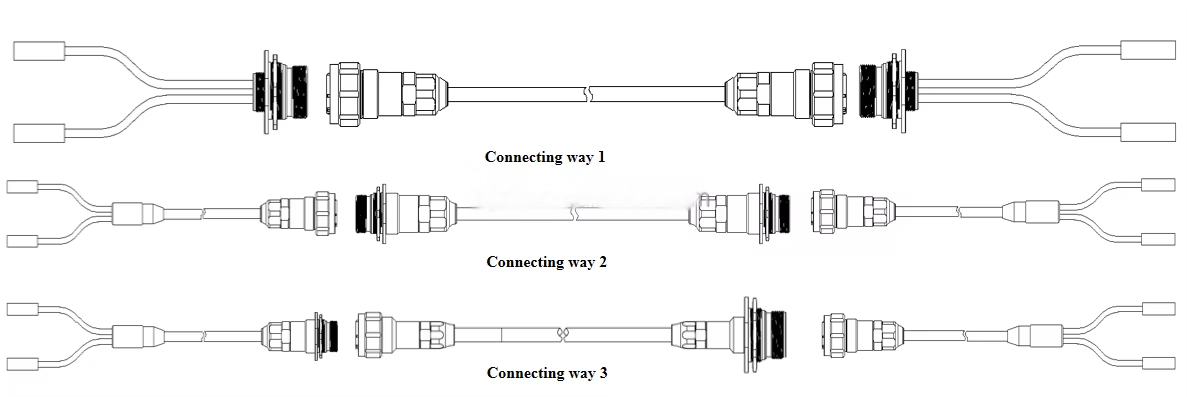

ZLO/GYD18 series Products connecting ways

微信图片_2025-09-15_134934_685

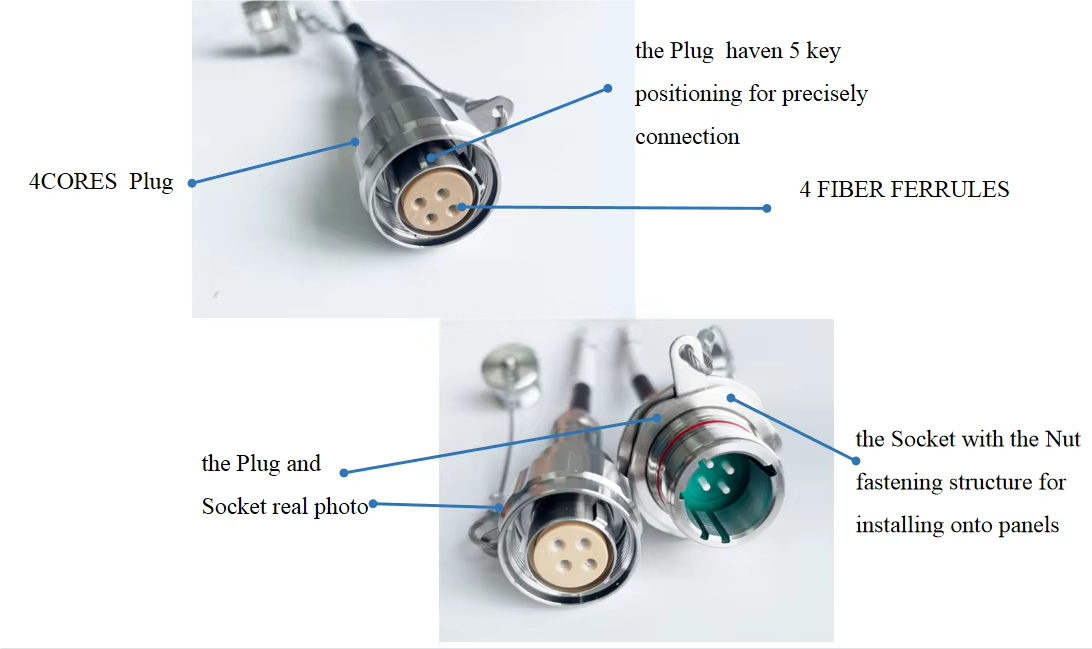

ZLO/GYD18 4CORES PLUG AND SOCKET

微信图片_2025-09-15_135006_709
