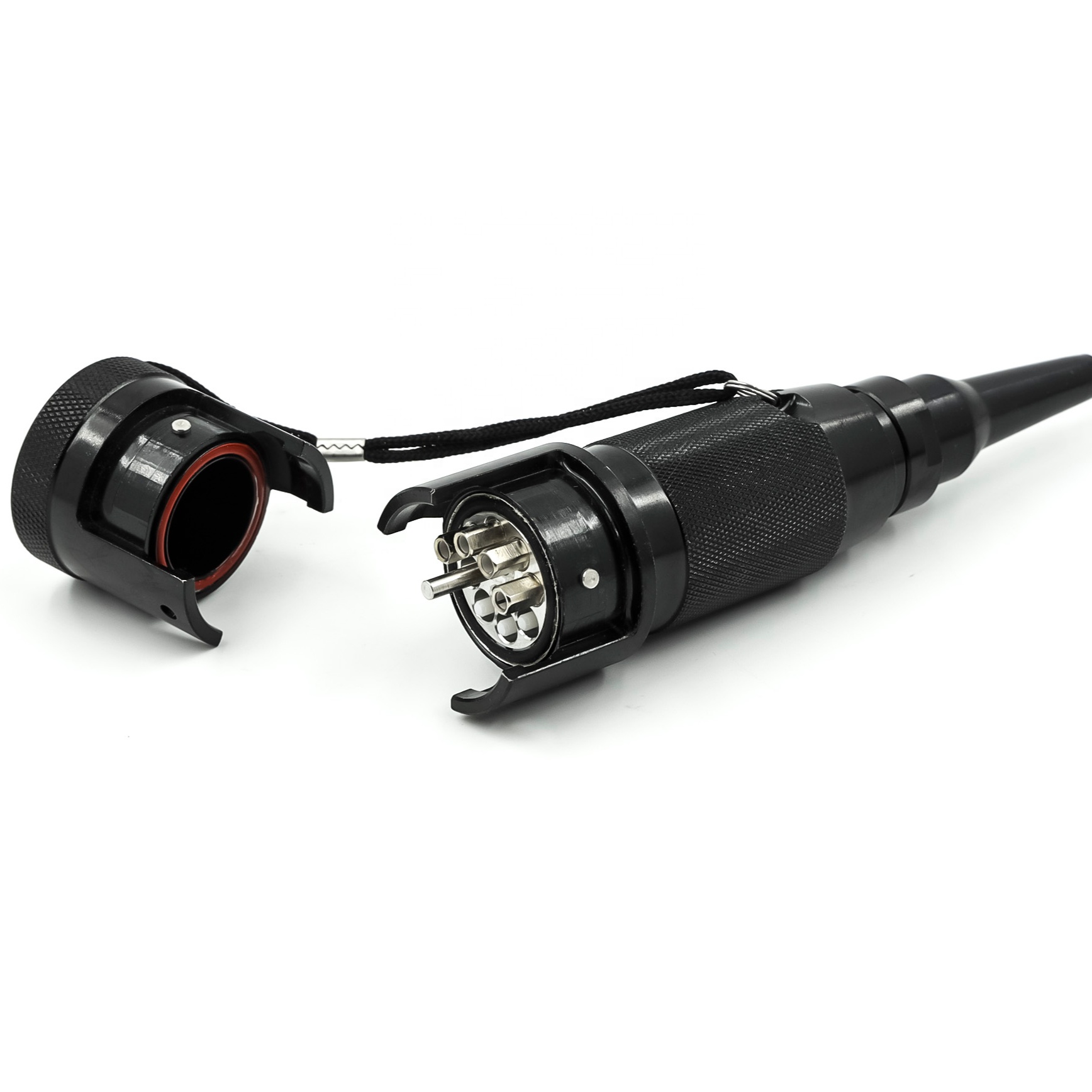

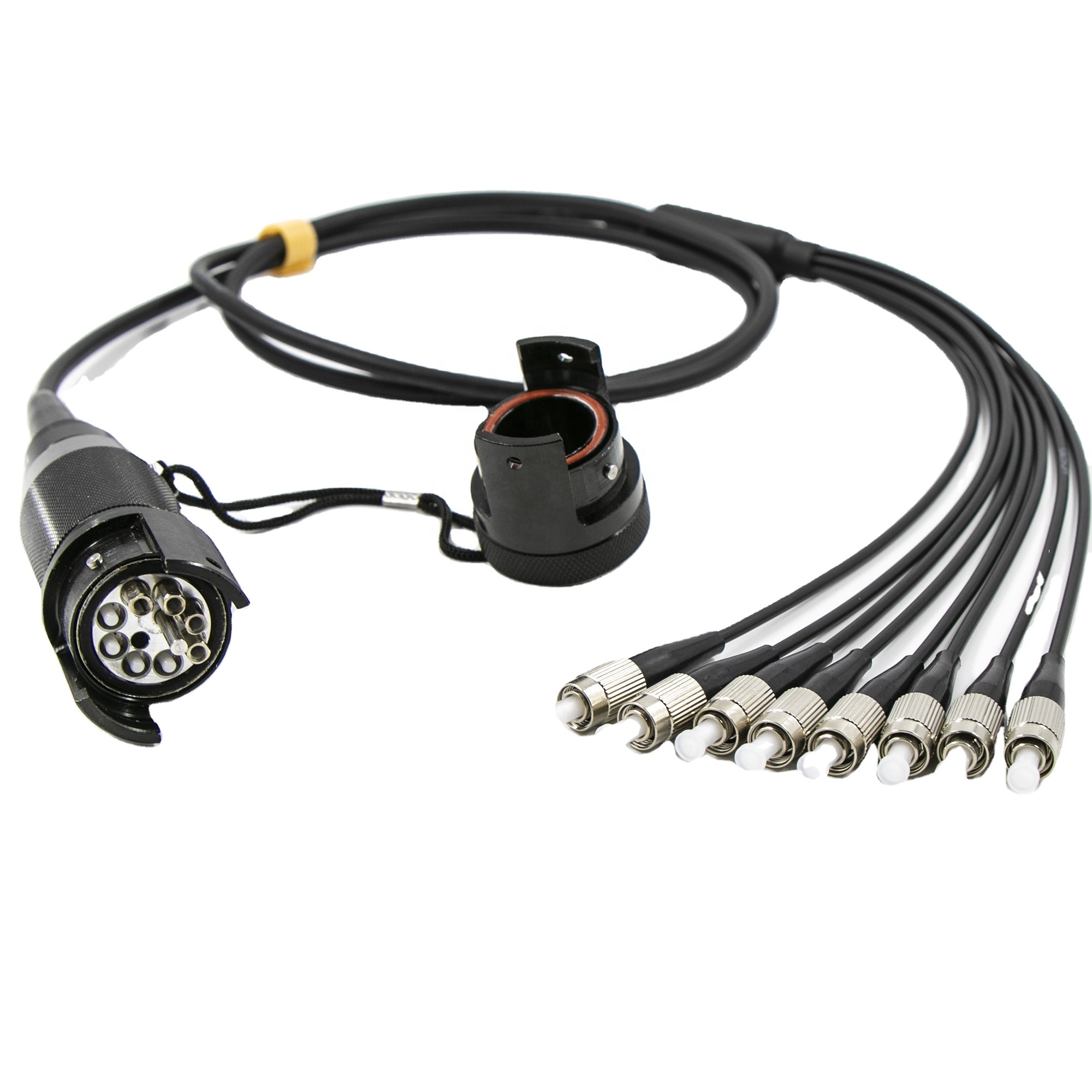

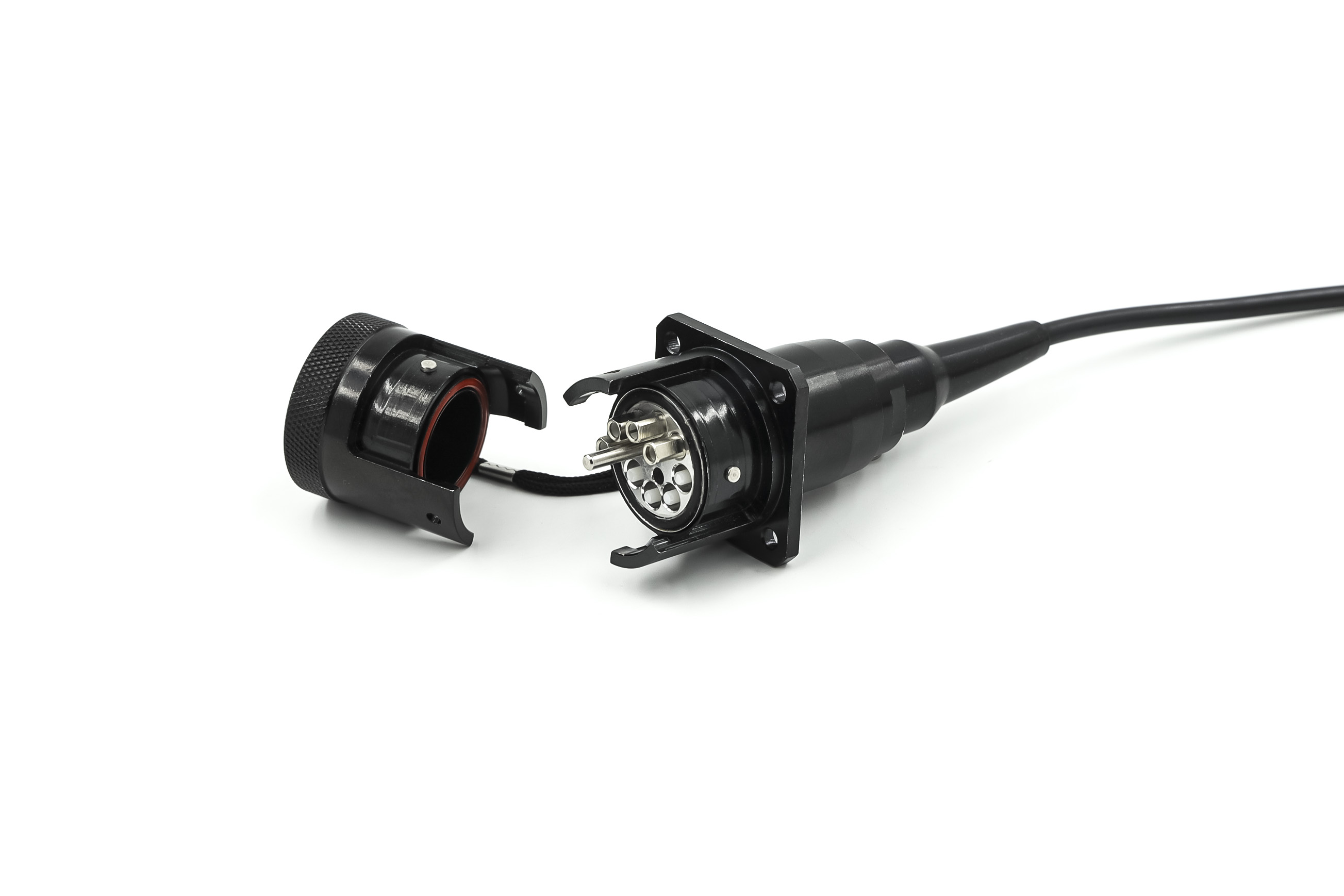

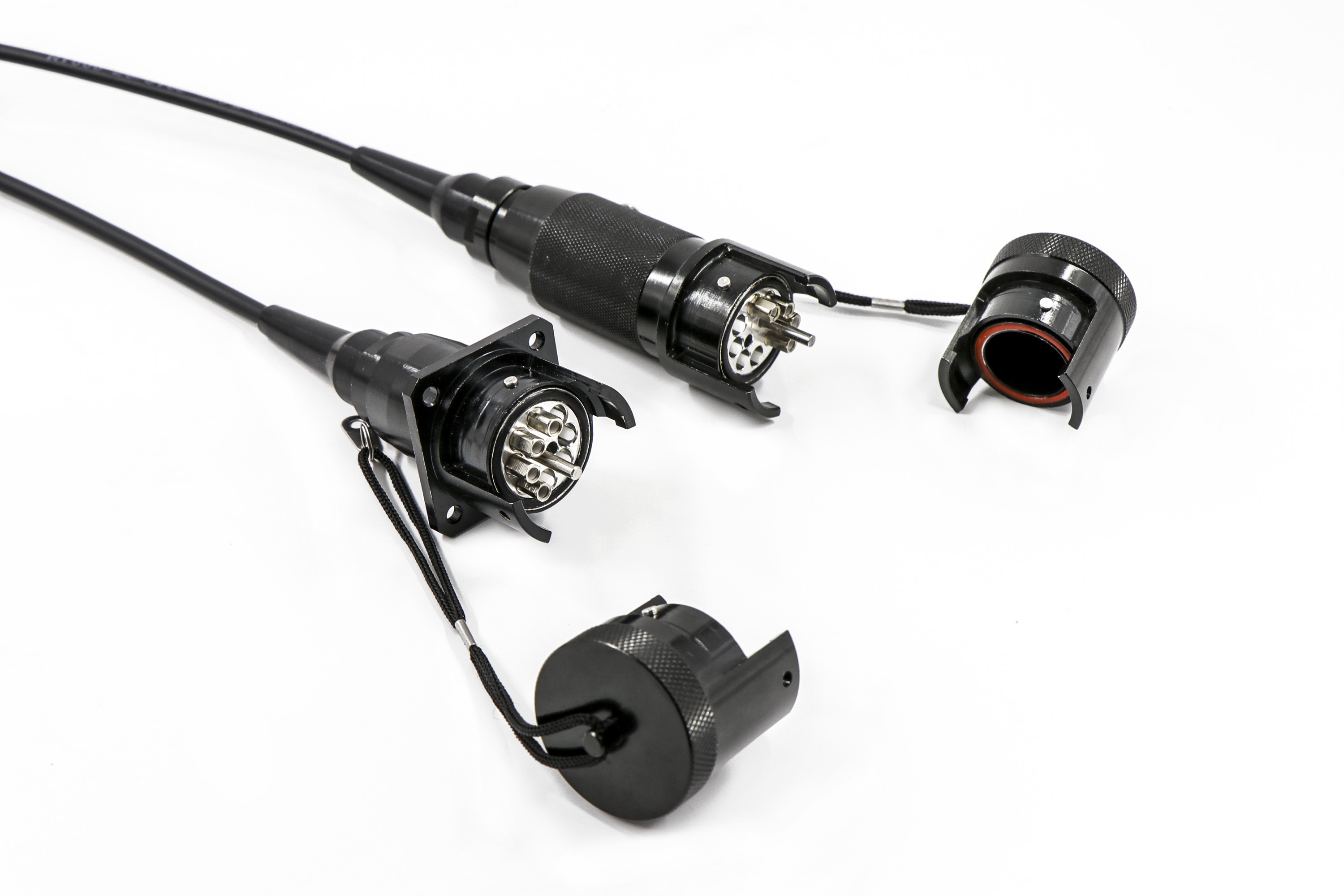

YG Hermaphroditic Outdoor Harsh Environment Harsh TBE 35mm 8 Core IP67 Connector Armored Fiber Optic Patch Cord

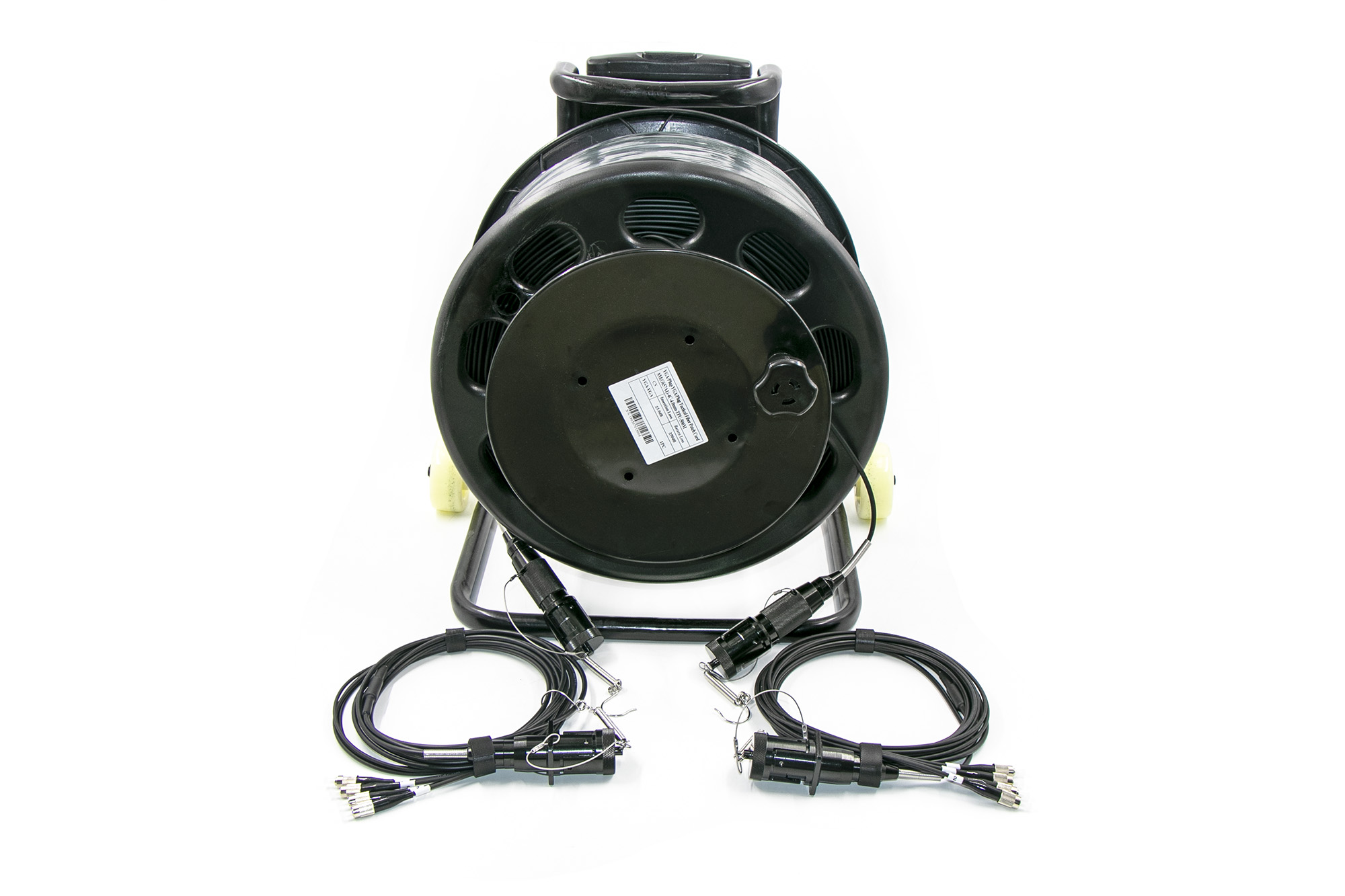

Field waterproof connector is also named YG telianthus connector. It was early designed by China Fiber& Electric Research Institute, and used for field telecommunication wirings, normally it's used with field cable reels. There's no plug or socket, male or female. Two connectors can be connected directly(without adapter) with pins and threads, the connection is very stable and can stand large impulse and tension.
Availability:
Quantity:
  • TBE/YG

  • OPTICWAVE

Feature
-Good mechanical and environmental characteristics;
-Flame retardant characteristics meet the requirements of relevant standards;
-The mechanical characteristics of jacket meet the requirements of relevant standards;
-Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;
-Meet various requirements of market and clients.

Application
-Wiring compact all-dielectric structure, the inner sleeve is Ф0.9mm fiber, the cable has a high strength-weight ratio, allowing for quick wiring;
-High-strength fiber composite structure secondary coating offers the best performance and minimum temperature of the additional attenuation cables in harsh conditions to ensure the reliability and service life;
-A special high-strength, flexible type central reinforcing element, to ensure fiber strength and bending properties;
-Large area of aramid reinforced fiber optic cable to provide a high mechanical strength;

Specification
Item
Parameter
Model
TBE 35
Fiber count
8cores
Applicable Cable
Armored/Unarmored
Cable diameter
5.0mm/ 7.0mm
Cable jacket material
PVC/LSZH/TPU/Customized
Cable jacket color
Black or customized
Insertion loss
Singlemode
Typ. ≤0.30dB
Return loss
Singlemode
≥50dB
